Bolte Drawn Arc Stud 10-25 UFN 10 Weld Shear Connector Studs

Name: Bolte Drawn Arc Stud 1025 UFN 10 Weld Shear Connector Studs
Brand: Bolte
Price: 1 USD

Quality Bolte Drawn Arc Stud 10-25 UFN 10 Weld Shear Connector Studs for sale

Brand Name : Bolte

Model Number : Shear connector

Certification : CE

Place of Origin : Genmany

MOQ : 10000 PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000 PCS

Delivery Time : 15 working days after received your payment

Packaging Details : Plastic bag plus paper packaging

d1 : 10-25

d3 : 13-31

d5 : 19-41

l2 : 50-300

Material : S235J2+C450

Ceramic ferrule : UFN 10 / UF 13-UF 25

Contact Now

Bolte Drawn Arc Stud 10-25 UFN 10 Weld Shear Connector Studs

Bolte Welding Studs for Drawn Arc Stud Welding

Shear Connector

Whatsapp: +86 13818731663

Wechart: 630531309

Bolte Drawn Arc Stud 10-25 UFN 10 Weld Shear Connector Studs

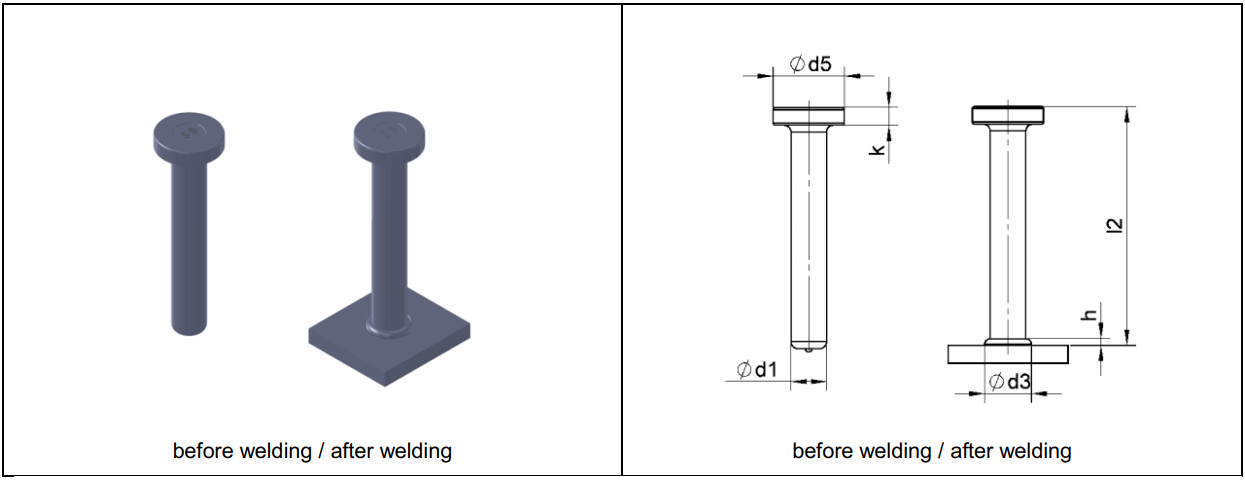

Dimensions						Material (item number)	Ceramic ferrule
d1	l2	d5	k	d3	h	S235J2+C450	Ceramic ferrule
10	50	19	7.1	13	2.5	75-10-050	UFN 10
10	75	19	7.1	13	2.5	75-10-075	UFN 10
10	100	19	7.1	13	2.5	75-10-100	UFN 10
10	125	19	7.1	13	2.5	75-10-125	UFN 10
10	150	19	7.1	13	2.5	75-10-150	UFN 10
10	175	19	7.1	13	2.5	75-10-175	UFN 10
10	200	19	7.1	13	2.5	75-10-200	UFN 10
10	225	19	7.1	13	2.5	75-10-225	UFN 10
10	250	19	7.1	13	2.5	75-10-250	UFN 10
13	50	25	8	17	3	75-13-050	UF 13
13	75	25	8	17	3	75-13-075	UF 13
13	100	25	8	17	3	75-13-100	UF 13
13	125	25	8	17	3	75-13-125	UF 13
13	150	25	8	17	3	75-13-150	UF 13
13	175	25	8	17	3	75-13-175	UF 13
13	200	25	8	17	3	75-13-200	UF 13
13	225	25	8	17	3	75-13-225	UF 13
13	250	25	8	17	3	75-13-250	UF 13
16	50	32	8	21	4.5	75-16-050	UF 16
16	75	32	8	21	4.5	75-16-075	UF 16
16	100	32	8	21	4.5	75-16-100	UF 16
16	125	32	8	21	4.5	75-16-125	UF 16
16	150	32	8	21	4.5	75-16-150	UF 16
16	175	32	8	21	4.5	75-16-175	UF 16
16	200	32	8	21	4.5	75-16-200	UF 16
16	225	32	8	21	4.5	75-16-225	UF 16
16	250	32	8	21	4.5	75-16-250	UF 16
16	275	32	8	21	4.5	75-16-275	UF 16
16	300	32	8	21	4.5	75-16-300	UF 16
19	50	32	10	23	6	75-19-050	UF 19
19	60	32	10	23	6	75-19-060	UF 19
19	75	32	10	23	6	75-19-075	UF 19
19	80	32	10	23	6	75-19-080	UF 19
19	90	32	10	23	6	75-19-090	UF 19
19	100	32	10	23	6	75-19-100	UF 19
19	125	32	10	23	6	75-19-125	UF 19
19	150	32	10	23	6	75-19-150	UF 19
19	175	32	10	23	6	75-19-175	UF 19
19	200	32	10	23	6	75-19-200	UF 19
19	225	32	10	23	6	75-19-225	UF 19
19	250	32	10	23	6	75-19-250	UF 19
19	275	32	10	23	6	75-19-275	UF 19
19	300	32	10	23	6	75-19-300	UF 19
22	75	35	10	29	6	75-22-075	UF 22
22	90	35	10	29	6	75-22-090	UF 22
22	100	35	10	29	6	75-22-100	UF 22
22	125	35	10	29	6	75-22-125	UF 22
22	150	35	10	29	6	75-22-150	UF 22
22	175	35	10	29	6	75-22-175	UF 22
22	200	35	10	29	6	75-22-200	UF 22
22	225	35	10	29	6	75-22-225	UF 22
22	250	35	10	29	6	75-22-250	UF 22
22	275	35	10	29	6	75-22-275	UF 22
22	300	35	10	29	6	75-22-300	UF 22
25	75	41	12	31	7	75-25-075	UF 25
25	100	41	12	31	7	75-25-100	UF 25
25	125	41	12	31	7	75-25-125	UF 25
25	150	41	12	31	7	75-25-150	UF 25
25	175	41	12	31	7	75-25-175	UF 25
25	200	41	12	31	7	75-25-200	UF 25
25	225	41	12	31	7	75-25-225	UF 25
25	250	41	12	31	7	75-25-250	UF 25
25	275	41	12	31	7	75-25-275	UF 25
25	300	41	12	31	7	75-25-300	UF 25

Bolte shear connectors are CE compliant and fully approved (European Technical Assessment ETA-11/0120). Production on modern multi-stage presses in Germany ensures high quality at low cost.

CE-conform

Bolte shear connectors are CE-conform. They fulfill all essential requirements of the Construction Products Regulation (Regulation (EC) No. 305/2011/EU).

European Technical Assessment ETA-11/0120

The European Technical Assessment ETA-11/0120 of the European Organisation for Technical Approvals (EOTA) issued by the German Institute of Civil Engineering (DIBt) is on hand.

Made in Germany

Bolte shear connectors are made in Germany at our location in Gevelsberg (certified according to DIN EN ISO 9001)
